- Size: Custom
- Place of Origin: china shandong
- Brand Name: DLK
- Model Number: MH 30t-25m
- Weight: 10000.000 kg
1. Features

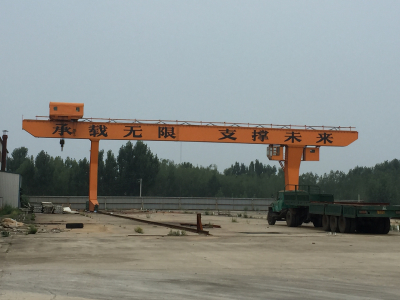

MH type electric hoist gantry crane can be used with CD, MD electric hoist. It is a small and medium-sized crane for railroad running .The working environment temperature is -25 ℃ to 40 ℃ ,and the working level is A3..
2. Main Specifications
The product name | Electric hoist gantry crane | |||
Specifications | MH 3~20t | |||
Span | 12~35m | |||
Maximum lifting height | 12m | |||
Hoisting speed | CD1 | MD1 | ||
5t | 8m/min | 5t | 8/0.8m/min | |
10t | 7m/min | 10t | 7/0.7m/min | |
16t | 3.5m/min | 16t | 3.5/0.35m/min | |
20t | 3m/min |
|
| |
Crab traveling speed | 20m/min | |||
Gantry traveling speed | 20~30m/min | |||
3. Quality Certifications
ISO9001
1) Packing: Wooden case for electric parts and high quality plastic cloth for others.
2) Delivery time: 35 days. The detail time can be adjusted according to the practical order.
3) Guarantee Period: 12 months
4) Offer Validity: 1 month
5) After-sale Service: Engineers available to service machinery overseas.
